WMS报表开发流程

此示例为物料汇总报表

Posted by 刘巨 on 2021-08-10

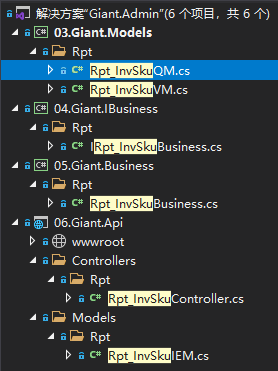

修改文件总览

报表开发
报表开发

建立查询实体与视图模型

1.查询实体就是在前端界面上，有哪些查询条件 (查询实体QueryModel:QM)
2.视图模型就是在前端界面上，列表要显示哪些数据 (视图模型ViewModel:QM)

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
namespace Giant.Models
{
    /// <summary>
    /// 物料汇总报表查询实体
    /// </summary>
    public class Rpt_InvSkuQM : BaseQM
    {
        /// <summary>
        /// 仓库ID
        /// </summary>
        [Required]
        public string WhseId { get; set; }
        /// <summary>
        /// 货主Id
        /// </summary>
        public string StorerId { get; set; }
        /// <summary>
        /// 物料Id
        /// </summary>
        public string SkuId { get; set; }
    }
}
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
namespace Giant.Models
{
    /// <summary>
    /// 物料汇总报表实体
    /// </summary>
    public class Rpt_InvSkuVM
    {
        /// <summary>
        /// 仓库ID
        /// </summary>
        [Required]
        public string WhseId { get; set; }
        /// <summary>
        /// 货主Id
        /// </summary>
        public string StorerId { get; set; }
        /// <summary>
        /// 货主编码
        /// </summary>
        public string StorerCode { get; set; }
        /// <summary>
        /// 货主名称
        /// </summary>
        public string StorerName { get; set; }
        /// <summary>
        /// 物料Id
        /// </summary>
        public string SkuId { get; set; }
        /// <summary>
        /// 物料编码
        /// </summary>
        public string SkuCode { get; set; }
        /// <summary>
        /// 物料名称
        /// </summary>
        public string SkuName { get; set; }
        /// <summary>
        /// 库存数量
        /// </summary>
        public decimal Qty { get; set; }
        /// <summary>
        /// 可用数量
        /// </summary>
        public decimal QtyUse { get; set; }
        /// <summary>
        /// 已分配
        /// </summary>
        public decimal QtyAllocated { get; set; }
        /// <summary>
        /// 已拣货
        /// </summary>
        public decimal QtyPicked { get; set; }
    }
}

编写数据获取接口

因为我们前端要显示分页，所以我们还是以分页查询条件为主
数据导出也是同一个接口，只不过导出数据的时候，我们把每页行数设置加大就可以了
基本上就实现一个接口，以查询实体为参数，以视图模型为返回结果

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
namespace Giant.IBusiness
{
    /// <summary>
    /// 物料汇总报表
    /// </summary>
    public interface IRpt_InvSkuBusiness : IBusRepository<Inv_Inventory>
    {
        /// <summary>
        /// 获取物料汇总数据
        /// </summary>
        /// <param name="query">查询数据</param>
        /// <returns></returns>
        Task<PageResult<Rpt_InvSkuVM>> GetSummaryAsync(PageInput<Rpt_InvSkuQM> query);
    }
}
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
namespace Giant.Business
{
    /// <summary>
    /// 物料汇总报表
    /// </summary>
    public class Rpt_InvSkuBusiness : BusRepository<Inv_Inventory>, IRpt_InvSkuBusiness, IScopedDependency
    {
        private IServiceProvider SvcProvider { get; set; }
        public Rpt_InvSkuBusiness(GDbContext context, IServiceProvider svcProvider)
            : base(context)
        {
            this.SvcProvider = svcProvider;
        }

        /// <summary>
        /// 获取物料汇总数据
        /// </summary>
        /// <param name="query">查询数据</param>
        /// <returns></returns>
        public async Task<PageResult<Rpt_InvSkuVM>> GetSummaryAsync(PageInput<Rpt_InvSkuQM> query)
        {
            var invQuery = this.GetQueryable(true);
            var search = query.Search;
            if (!search.WhseId.IsNullOrEmpty())
                invQuery = invQuery.Where(w => w.WhseId == search.WhseId);
            if (!search.StorerId.IsNullOrEmpty())
                invQuery = invQuery.Where(w => w.StorerId == search.StorerId);
            if (!search.SkuId.IsNullOrEmpty())
                invQuery = invQuery.Where(w => w.SkuId == search.SkuId);

            var q = from inv in invQuery
                    group inv by new { inv.WhseId, inv.StorerId, inv.SkuId } into g
                    select new { g.Key.WhseId, g.Key.StorerId, g.Key.SkuId, Qty = g.Sum(s => s.Qty), QtyAllocated = g.Sum(s => s.QtyAllocated), QtyPicked = g.Sum(s => s.QtyPicked) } into i
                    join storer in this.GetQueryable<Bas_Storer>(true) on i.StorerId equals storer.Id
                    join sku in this.GetQueryable<Bas_Sku>(true) on i.SkuId equals sku.Id
                    select new Rpt_InvSkuVM()
                    {
                        WhseId = i.WhseId,
                        StorerId = i.StorerId,
                        StorerCode = storer.Code,
                        StorerName = storer.Name,
                        SkuId = i.SkuId,
                        SkuCode = sku.Code,
                        SkuName = sku.Name,
                        Qty = i.Qty,
                        QtyUse = i.Qty - i.QtyAllocated - i.QtyPicked,
                        QtyAllocated = i.QtyAllocated,
                        QtyPicked = i.QtyPicked
                    };
            var result = await q.GetPageResultAsync(query);
            return result;
        }
    }
}

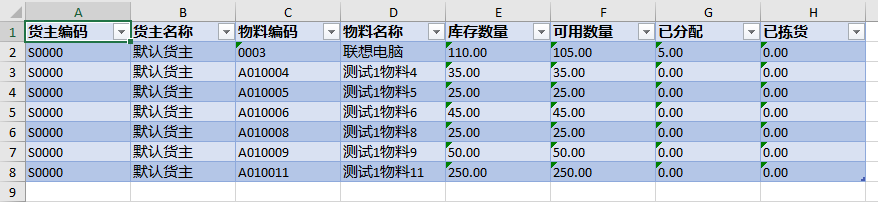

创建导出模型

导出模型在API层创建，设置好Excel要显示哪些列

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
namespace Giant.Api
{
    /// <summary>
    /// 物料汇总
    /// </summary>
    [ExcelExporter(Name = "物料汇总", TableStyle = OfficeOpenXml.Table.TableStyles.Medium23, AutoFitAllColumn = true)]
    [ExcelImporter(SheetName = "物料汇总", IsLabelingError = true)]
    public class Rpt_InvSkuIEM
    {
        /// <summary>
        /// 货主编码
        /// </summary>
        [ExporterHeader(DisplayName = "货主编码", Format = "@")]
        [ImporterHeader(Name = "货主编码")]
        public string StorerCode { get; set; }
        /// <summary>
        /// 货主名称
        /// </summary>
        [ExporterHeader(DisplayName = "货主名称", Format = "@")]
        [ImporterHeader(Name = "货主名称")]
        public string StorerName { get; set; }
        /// <summary>
        /// 物料编码
        /// </summary>
        [ExporterHeader(DisplayName = "物料编码", Format = "@")]
        [ImporterHeader(Name = "物料编码")]
        public string SkuCode { get; set; }
        /// <summary>
        /// 物料名称
        /// </summary>
        [ExporterHeader(DisplayName = "物料名称", Format = "@")]
        [ImporterHeader(Name = "物料名称")]
        public string SkuName { get; set; }
        /// <summary>
        /// 库存数量
        /// </summary>
        [ExporterHeader(DisplayName = "库存数量", Format = "#,###.00")]
        [ImporterHeader(Name = "库存数量")]
        public decimal Qty { get; set; }
        /// <summary>
        /// 可用数量
        /// </summary>
        [ExporterHeader(DisplayName = "可用数量", Format = "#,###.00")]
        [ImporterHeader(Name = "可用数量")]
        public decimal QtyUse { get; set; }
        /// <summary>
        /// 已分配
        /// </summary>
        [ExporterHeader(DisplayName = "已分配", Format = "#,###.00")]
        [ImporterHeader(Name = "已分配")]
        public decimal QtyAllocated { get; set; }
        /// <summary>
        /// 已拣货
        /// </summary>
        [ExporterHeader(DisplayName = "已拣货", Format = "#,###.00")]
        [ImporterHeader(Name = "已拣货")]
        public decimal QtyPicked { get; set; }

        public Rpt_InvSkuIEM() { }
        public Rpt_InvSkuIEM(Giant.Models.Rpt_InvSkuVM model)
        {
            this.StorerCode = model.StorerCode;
            this.StorerName = model.StorerName;
            this.SkuCode = model.SkuCode;
            this.SkuName = model.SkuName;
            this.Qty = model.Qty;
            this.QtyUse = model.QtyUse;
            this.QtyAllocated = model.QtyAllocated;
            this.QtyPicked = model.QtyPicked;
        }
    }
}

发步API接口

api接口我们就公开两个
1.前端显示分布数据接口
2.前端数据导出接口

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
namespace Giant.Api.Controllers
{
    /// <summary>
    /// 物料汇总报表
    /// </summary>
    public class Rpt_InvSkuController : BaseController
    {
        public IRpt_InvSkuBusiness Bus { get; set; }
        public IServiceProvider SvcProvider { get; set; }
        public Rpt_InvSkuController(IRpt_InvSkuBusiness bus, IServiceProvider svcProvider)
        {
            this.Bus = bus;
            this.SvcProvider = svcProvider;
        }

        /// <summary>
        /// 获取物料汇总数据
        /// </summary>
        /// <param name="query">查询数据</param>
        /// <returns></returns>
        [HttpPost]
        public Task<PageResult<Rpt_InvSkuVM>> GetSummaryAsync(PageInput<Rpt_InvSkuQM> query)
        {
            return this.Bus.GetSummaryAsync(query);
        }

        /// <summary>
        /// 导出库存数据
        /// </summary>
        /// <param name="query">库存查询条件</param>
        /// <returns></returns>
        [HttpPost]
        public async Task<string> ExportAsync(Rpt_InvSkuQM query)
        {
            var data = await this.Bus.GetSummaryAsync(new PageInput<Rpt_InvSkuQM>()
            {
                Search = query,
                PageNo = 1,
                PageSize = 1000,
                SortField = "SkuCode",
                SortOrder = "asc"
            });
            var exportData = data.Data.Select(s => new Rpt_InvSkuIEM(s)).ToList();
            var exportSvc = this.SvcProvider.GetRequiredService<Magicodes.ExporterAndImporter.Core.IExporter>();
            var hostSvc = this.SvcProvider.GetRequiredService<Microsoft.AspNetCore.Hosting.IWebHostEnvironment>();
            var dirPath = Path.Combine(hostSvc.WebRootPath, "Export", "Rpt_InvSku", DateTime.Now.ToString("yyyyMM"));
            if (!Directory.Exists(dirPath))
                Directory.CreateDirectory(dirPath);
            var filePath = Path.Combine(dirPath, $"Rpt_InvSku{DateTime.Now.ToString("yyMMddHHmmss")}.xlsx");
            await exportSvc.Export(filePath, exportData);
            var webPath = filePath.Replace(hostSvc.WebRootPath, "").Replace("\\", "/");
            return webPath;
        }
    }
}

前端API调用方法

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
import request from '@/utils/request'
/**
 * Rpt_InvSku API接口服务
 */
export default {
    /**
     * 获取物料汇总数据
     * @param {Object} parameter 查询参数
     * @returns 汇总数据
     */
     GetSummary(parameter) {
        return request({
            url: '/api/Rpt_InvSku/GetSummary',
            method: 'post',
            data: parameter
        })
    },
    /**
     * 导出数据
     * @param {Object} query 查询条件
     * @returns excel文件地址
     */
    Export(query) {
        return request({
            url: '/api/Rpt_InvSku/Export',
            method: 'post',
            data: query
        })
    }
}

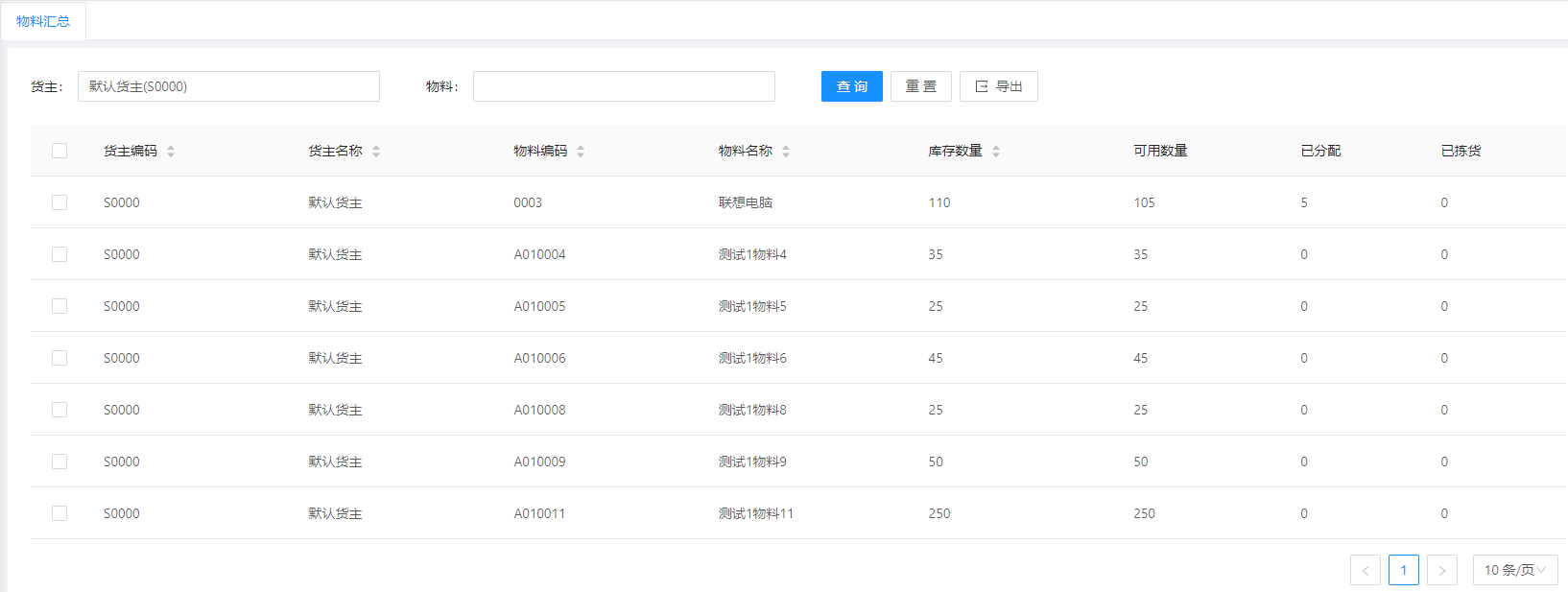

前端界面

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133
134
135
136
137
138
139
140
141
142
143
144
145
146
147
148
<template>
  <a-card :bordered="false">
    <div class="table-page-search-wrapper">
      <a-form layout="inline">
        <a-row :gutter="48">
          <a-col :md="6" :sm="24">
            <a-form-item label="货主">
              <StorerSelect v-model="queryParam.StorerId" :type="['Storer']"></StorerSelect>
            </a-form-item>
          </a-col>
          <a-col :md="6" :sm="24">
            <a-form-item label="物料">
              <SkuSelect v-model="queryParam.SkuId" :storer="queryParam.StorerId"></SkuSelect>
            </a-form-item>
          </a-col>
          <a-col :md="6" :sm="24">
            <span class="table-page-search-submitButtons">
              <a-button type="primary" v-action:Query @click="()=>{this.$refs.table.refresh()}">查询</a-button>
              <a-button style="margin-left: 8px" @click="resetSearchForm()">重置</a-button>
              <a-button style="margin-left: 8px" v-action:Export icon="export" @click="handleExport()">导出</a-button>
            </span>
          </a-col>
        </a-row>
      </a-form>
    </div>
    <s-table ref="table" size="default" rowKey="SkuId" :columns="columns" :data="loadData" :rowSelection="rowSelection" showPagination="auto">
    </s-table>
  </a-card>
</template>

<script>
import { mapGetters } from 'vuex'
import moment from 'moment'
import { STable } from '@/components'
import MainSvc from '@/api/Rpt/Rpt_InvSkuSvc'
import EnumSelect from '@/components/CF/EnumSelect'
import EnumName from '@/components/CF/EnumName'
import StorerSelect from '@/components/Bas/StorerSelect'
import SkuSelect from '@/components/Bas/SkuSelect'
import LocSelect from '@/components/Bas/LocSelect'

const columns = [
  { title: '货主编码', dataIndex: 'StorerCode', sorter: true },
  { title: '货主名称', dataIndex: 'StorerName', sorter: true },
  { title: '物料编码', dataIndex: 'SkuCode', sorter: true },
  { title: '物料名称', dataIndex: 'SkuName', sorter: true },
  { title: '库存数量', dataIndex: 'Qty', sorter: true },
  { title: '可用数量', dataIndex: 'QtyUse' },
  { title: '已分配', dataIndex: 'QtyAllocated' },
  { title: '已拣货', dataIndex: 'QtyPicked' }
]

export default {
  components: {
    STable,
    MainSvc,
    EnumSelect,
    EnumName,
    StorerSelect,
    SkuSelect,
    LocSelect
  },
  data() {
    this.columns = columns
    return {
      // create model
      visible: false,
      confirmLoading: false,
      mdl: null,
      // 高级搜索 展开/关闭
      advanced: false,
      // 查询参数
      queryParam: { WhseId: '', StorerId: '', SkuId: '' },
      // 加载数据方法 必须为 Promise 对象
      loadData: parameter => {
        this.queryParam.WhseId = this.defaultWhseId
        var _query = Object.assign({}, { ...this.queryParam })
        for (const key in _query) {
          if (moment.isMoment(_query[key])) {
            _query[key] = _query[key].format('YYYY-MM-DD')
          }
        }
        const requestParameters = Object.assign({ sortField: 'SkuCode', sortOrder: 'asc', Search: _query }, parameter)
        console.log('loadData request parameters:', requestParameters)
        return MainSvc.GetSummary(requestParameters)
      },
      selectedRowKeys: [],
      selectedRows: []
    }
  },
  filters: {
  },
  created() {
    this.resetSearchForm()
  },
  computed: {
    ...mapGetters({
      defaultWhseId: 'whseId',
      defaultStorerId: 'storerId'
    }),
    rowSelection() {
      return {
        selectedRowKeys: this.selectedRowKeys,
        onChange: this.onSelectChange
      }
    }
  },
  methods: {
    moment,
    onSelectChange(selectedRowKeys, selectedRows) {
      this.selectedRowKeys = selectedRowKeys
      this.selectedRows = selectedRows
    },
    resetSearchForm() {
      this.queryParam = { WhseId: this.defaultWhseId, StorerId: this.defaultStorerId, SkuId: '' }
    },
    handleExport() {
      this.queryParam.WhseId = this.defaultWhseId
      var _query = Object.assign({}, { ...this.queryParam })
      for (const key in _query) {
        if (moment.isMoment(_query[key])) {
          _query[key] = _query[key].format('YYYY-MM-DD')
        }
      }
      MainSvc.Export(_query).then(result => {
        if (result.Success) {
          var fileName = result.Data.substring(result.Data.lastIndexOf('/') + 1)
          var filePath = `${process.env.VUE_APP_API_BASE_URL}${result.Data}`
          console.log('handleExport', fileName, filePath)
          try {
            var elem = document.createElement('a')
            elem.download = fileName
            elem.href = filePath
            elem.style.display = 'none'
            document.body.appendChild(elem)
            elem.click()
            document.body.removeChild(elem)
          } catch (e) {
            this.$message.error('下载异常！')
          }
        } else {
          this.$message.error(result.Msg)
        }
      })
    }
  }
}
</script>

注意事项

1.界面创建好后，要在Sys_Menu创建菜单
2.创建2个操作权限，一个查询，一个导出

1
2
builder.HasData(new Sys_Action() { Id = "50101", MenuId = "501", Name = "查询", Code = "Query", CreateUserId = "1", ModifyUserId = "1" });
builder.HasData(new Sys_Action() { Id = "50102", MenuId = "501", Name = "导出", Code = "Export", CreateUserId = "1", ModifyUserId = "1" });

3.给默认角色授权

最终效果

报表开发
报表开发

FEATURED TAGS
WMS
FRIENDS
